Can someone help me with the uart serial consols log for boot logs?

General
1

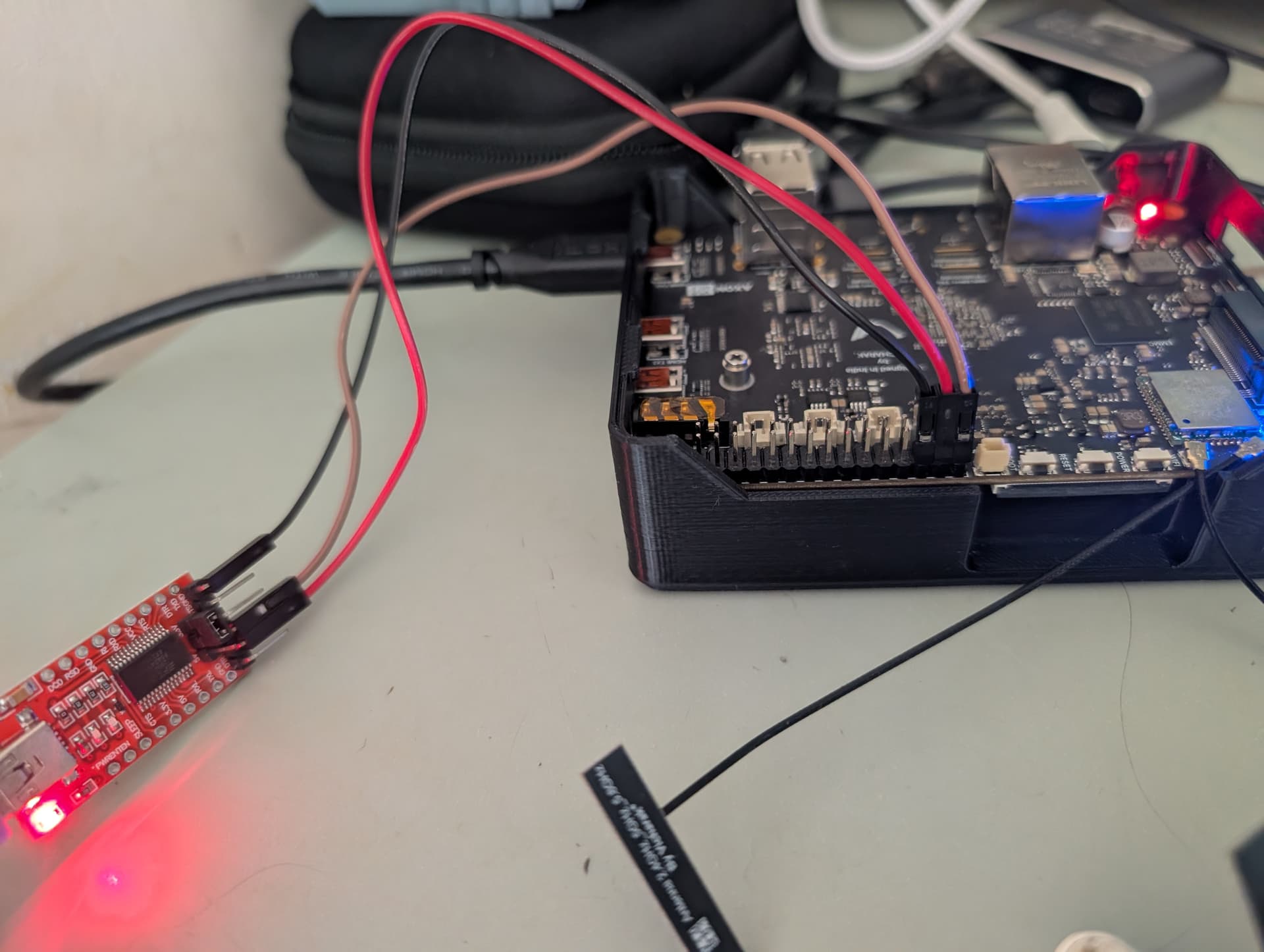

Boot logs over uart not showing up in screen with baud 1500000. Attaching my pin attachements

PXL_20260810_065212831.RAW-01.MP
PXL_20260810_065212831.RAW-01.MP1920×2550 261 KB

PXL_20260810_064343517.RAW-01.MP
PXL_20260810_064343517.RAW-01.MP1920×2550 150 KB

Can anyone help here ?

2

Axon Serial UART logs

1 Like
3

I updated the connections and now I see garbage on console.

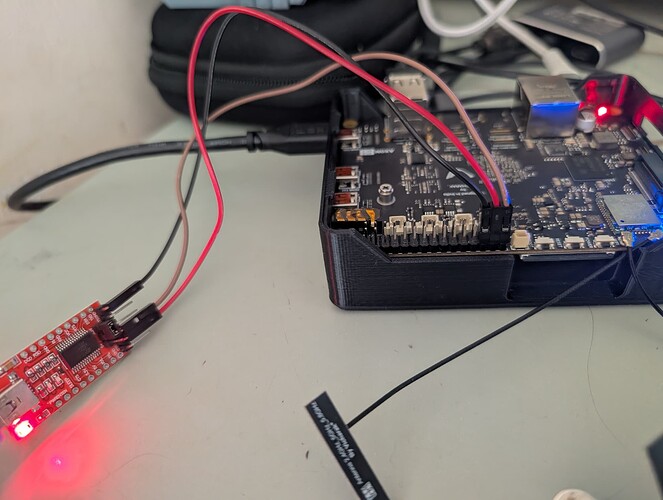

PXL_20260810_080701859.RAW-01.MP
PXL_20260810_080701859.RAW-01.MP1920×1446 145 KB

IMG-20260810-WA0016
IMG-20260810-WA00161600×440 329 KB

4

Kindly Go through Documentation,
Set baudrate 1500000

5

baud rate was set correctly.

6

Then Just reboot axon again by pressing RESET button.
Make sure your module can support 1500000 baud rate.
Refer module datasheet.
