I am using Raspberry Pi OV5647 5MP camera with axon through adaptor. but image is very dark. and very hard to see any moment if i do on front of camera.
How to fix this?
Run below command :
sudo systemctl status rkaiq_3A.service
sudo systemctl restart rkaiq_3A.service
If it may required to install new package.
sudo apt update
sudo apt install camera-engine-rkaiq
I ran last two commands and restarted service
○ rkaiq_3A.service - Enable Rockchip camera engine rkaiq
Loaded: loaded (/usr/lib/systemd/system/rkaiq_3A.service; enabled; preset: enabled)
Active: inactive (dead) since Wed 2026-07-29 11:19:21 IST; 5s ago
Duration: 130ms
Process: 6004 ExecStart=/etc/init.d/S40rkaiq_3A start (code=exited, status=0/SUCCESS)
Process: 6017 ExecStop=/etc/init.d/S40rkaiq_3A stop (code=exited, status=0/SUCCESS)
Main PID: 6007 (code=exited, status=0/SUCCESS)
CPU: 54ms
Jul 29 11:19:21 vicharak rkaiq_3A[6009]: ERR: Bad media topology for: /dev/media14
Jul 29 11:19:21 vicharak rkaiq_3A[6009]: ERR: Bad media topology for: /dev/media15
Jul 29 11:19:21 vicharak rkaiq_3A[6009]: XCORE:E:access /etc/iqfiles//ov5647_rpi-camera-v1_default.json && /etc/iqfiles//ov5647_rpi-camera-v1_default.bin failed!
Jul 29 11:19:21 vicharak rkaiq_3A[6009]: XCORE:E:_rkAiqManager init error!
Jul 29 11:19:21 vicharak rkaiq_3A[6009]: CAMHW:E:can't find sensor
Jul 29 11:19:21 vicharak rkaiq_3A[6009]: XCORE:E:camhw deinit error -7
Jul 29 11:19:21 vicharak rkaiq_3A[6009]: IPCSERVER:K:cid[-1] Deinit success
Jul 29 11:19:21 vicharak rkaiq_3A[6009]: MessageParser process loop exit!
Jul 29 11:19:21 vicharak rkaiq_3A[6009]: XCORE:K:cid[0] rk_aiq_uapi_sysctl_deinit_locked success.
Jul 29 11:19:21 vicharak S40rkaiq_3A[6018]: rkaiq_3A_server: no process found
vicharak@vicharak:~$ qv4l2
Gtk-Message: 11:21:01.826: Failed to load module "atk-bridge": 'gtk_module_display_init': /usr/lib/aarch64-linux-gnu/gtk-2.0/modules/libgail.so: undefined symbol: gtk_module_display_init
Using mplane plugin for capture
Using mplane plugin for capture
Using mplane plugin for capture
Using mplane plugin for capture
Using mplane plugin for capture

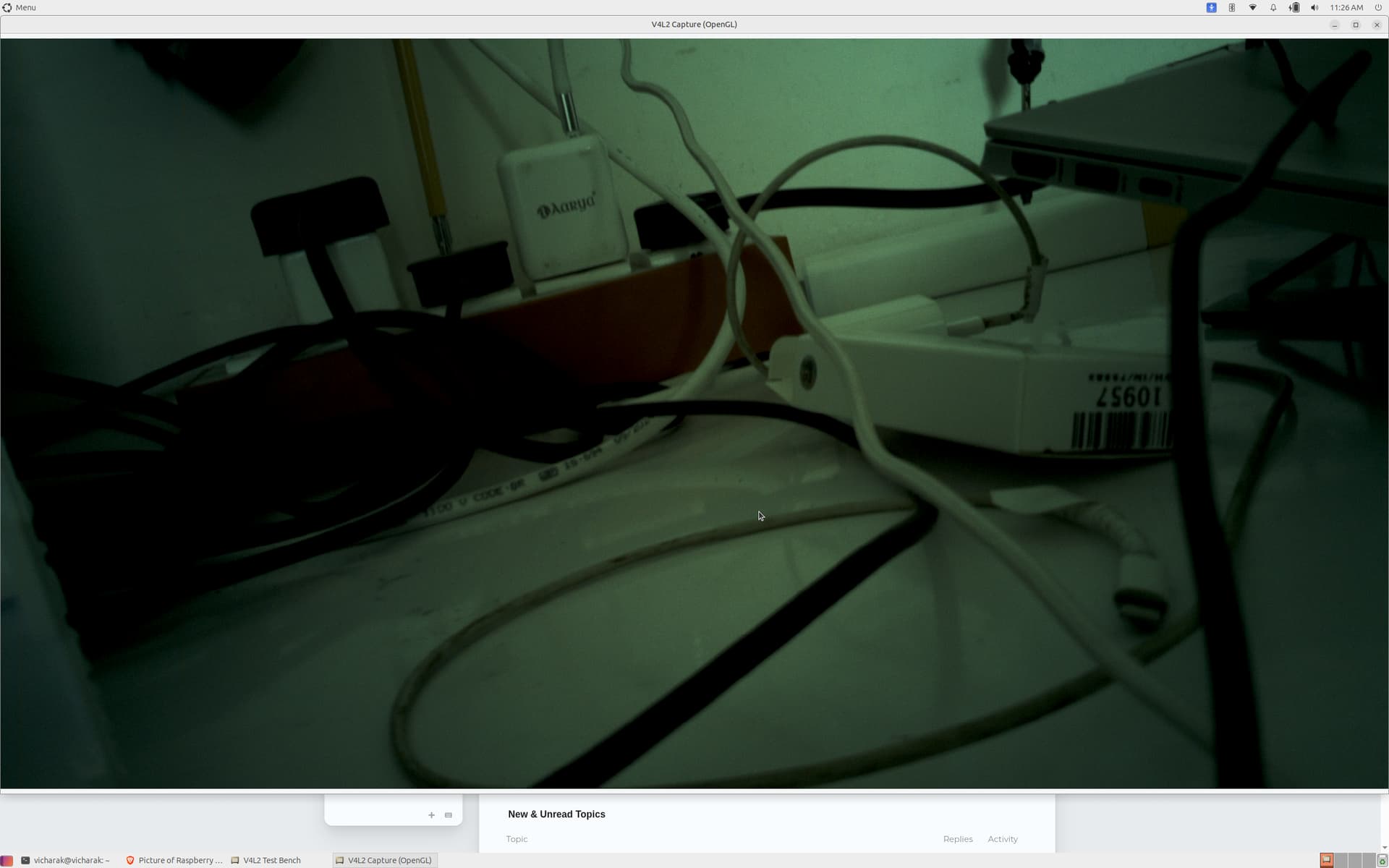

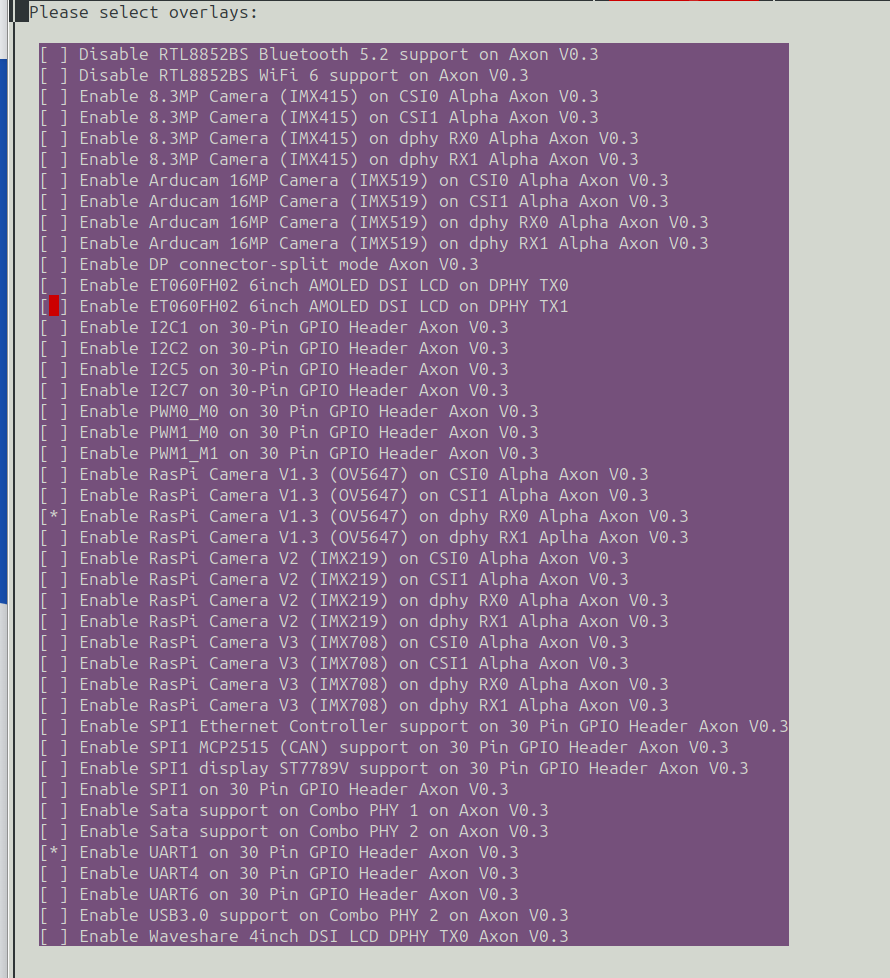

Make sure that you have enabled one overlay only of the particular connector you are using.
Yes. only one overlay is enabled
what could be issue?
Use CSI0 connector, and let us know.
looks like there is a issue with the camera ISP
If you are using latest image, then it should be directly work.
For the debugging purpose send us the output of
media-ctl -d 0 -p
media-ctl -d 1 -p
media-ctl -d 2 -p
Make sure you should have connected only a single camera before running these commands.
Ok i will try this weekend and let you know
I am using CSI0 now and here is output of commands you ask for
